PS500 - Where does this little part belong?

#1 Beitrag von Muug » 05.11.2017, 15:26

Hi,

to be able to repair the broken cable between the on/off "button" and the rubber wheel, I had to put the turntable on its head. At that moment something fell out. Can someone tell me where I've got to put this part please?
It's about 3-4cm long.


Any help is greatly appreciated!

Imperial1963
Jungspund
Jungspund
Beiträge: 13
Registriert: 10.11.2016, 21:23
Wohnort: Prag

Re: PS500 - Where does this little part belong?

#2 Beitrag von Imperial1963 » 15.02.2018, 23:38

Hi Muug,

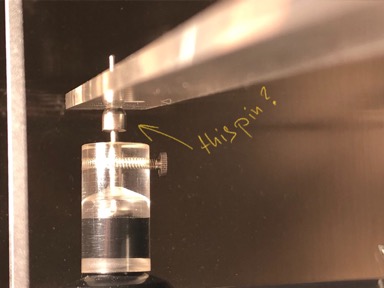

I would say that this is the pin for the brush arm in the back left corner of the player, see image
