Has anyone had his or her TG 60 Modified for Wall Hanging?

[Rocco]

Hello,

I have recently purchased a TG 60 to complete my Braun wall system, however the back of it does not have the integrated eyelets for hanging. I would love to hear if anyone has found a creative solution to this conundrum that does not involve mounting on Vitsoe brackets or drilling brackets into the back.

Best,

Rocco

[tomjorg]

Hello Rocco,

there were fittings available, they were screwed to the TG, then one had eyelets for wall mounting.








Originals are very rare, of course, but at times, i have heard of reproductions!

Regards

Thomas

[Rocco]

Thanks.

So is it the case that no TG 60 has integrated eyelets for wall hanging on the rear plate like the TS 45?

[tomjorg]

Welcome!

And Yes!

As far as I know, those fittings were / are needed for wall mounting!

Greetings

Thomas

[DerHags]

Hello Rocco,

You definitely need the parts pictured above.

With the the sketch above you can go to a local metal worker. They will able to create a pair for you.

I did the same some month ago.

The bottom of the TG60 is prepared for the fittings. You need to remove one of the rubber legs. The 2nd screw holds the bottom to the case.

I can make picture this evening.

Hagen

[DerHags]

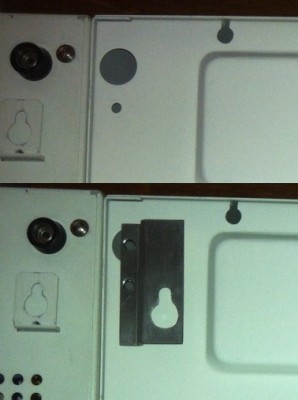

On the left you can see the TS45. The right chassis of the TG60.

My TG-60 has no screws because because it is freshly painted - thanks a lot to Mr. Wölker in Darmstadt.

Hagen
